• Black roof rails
• Painted front bumper
• Painted rear step bumper w/step
• Color-keyed upper body-side molding
• Platinum color grille
• Black fold-away mirrors
• Flip-open rear quarter glass
• Solar-tinted glass-inc: windshield, front door
• Privacy glass-inc: rear doors/rear
• Speed-sensitive intermittent windshield wipers
• Black door handles
• Hood sound insulation
• Cargo box-inc: composite material, black interior, locking tailgate
• Cargo area-inc: (10) tie down hooks, lamp, 12V pwr point

• 5-passenger seating
• Cloth low-back buckets-inc: 2-way adjustable headrests
• 60/40 fold flat rear bench w/headrests
• Floor console-inc: (4) cup holders, padded armrest, removable soft pack bag, convenience clip
• Textured black composite material floor covering
• Instrument panel gauges-inc: tachometer, oil pressure, coolant temperature, voltmeter
• Warning chimes-inc: headlights-on, key-in-ignition, seat belt
• Pwr front windows
• Pwr door locks-inc: rear door child safety lockout
• Remote hood release
• SecuriLock passive anti-theft system
• Air conditioning
• ETR AM/FM stereo radio w/compact disc-inc: clock
• Glove box w/lamp
• Black cigarette lighter
• Ash tray w/interior lamp
• (2) instrument panel 12-volt pwr points
• Manual day/night rearview mirror
• Color-keyed cloth headliner
• Color-keyed cloth visors w/covered vanity mirrors
• (2) front grab handles
• (2) rear color-keyed coat hooks
• Front dome/map light

• Driver & front passenger airbags
• 4-wheel anti-lock braking system
• 3-point safety belts all seating positions-inc: front height adjustable
• 2nd row child seat tether anchors
• Child safety rear door locks
• Dual note horn

4.0L (245) SOHC MPFI V6 ENGINE

• (STD)

• Mileage
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 7.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2710
• Gross Axle Wt Rating - Rear (lbs): 3200
• Curb Weight - Front (lbs): 2250
• Curb Weight - Rear (lbs): 1853
• Gross Vehicle Weight Rating Cap (lbs): 5660
• Gross Combined Wt Rating (lbs): 7000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2700
• Dead Weight Hitch - Max Tongue Wt. (lbs): 270
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Leaf Spring
• Spring Capacity - Front (lbs): 2900
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent SLA
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 2710
• Axle Capacity - Rear (lbs): 3200
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 1.38
• Shock Absorber Diameter - Rear (mm): 1.38
• Stabilizer Bar Diameter - Front (in): 1.34
• Stabilizer Bar Diameter - Rear (in): 0.77
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 0.39
• Rear Brake Rotor Diam x Thickness (in): 11.85 x 0.37
• Tires
• Front Tire Order Code: T53
• Rear Tire Order Code: T53
• Front Tire Size: P235/70R16
• Rear Tire Size: P235/70R16
• Spare Tire Size: P235/70R16
• Front Tire Capacity (lbs): 1843
• Rear Tire Capacity (lbs): 1843
• Spare Tire Capacity (lbs): 1843
• Revolutions/Mile @ 45 mph - Front: 721
• Revolutions/Mile @ 45 mph - Rear: 721
• Revolutions/Mile @ 45 mph - Spare: 721
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power Rack & Pinion
• Steering Ratio (:1), On Center: 17.5
• Turning Diameter - Curb to Curb (ft): 43.1
• Turning Diameter - Wall to Wall (ft): 44.9
• Frame
• Frame Type: Boxed w/Single Channel
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.4
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 125.9
• Length, Overall w/o rear bumper (in): 205.9
• Width, Max w/o mirrors (in): 71.8
• Height, Overall (in): 70.1
• Overhang, Front (in): 34.6
• Overhang, Rear w/o bumper (in): 45.4
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 31.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 6.7
• Ground Clearance, Rear (in): 6.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 50.0
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 51.4
• Cargo Box Width @ Wheelhousings (in): 41.2
• Cargo Box (Area) Height (in): 19.7
• Tailgate Width (in): 49.5
• Cargo Volume (ft³): 29.6
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.4
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 56.7
• Front Hip Room (in): 52.7
• Second Head Room (in): 38.9
• Second Leg Room (in): 37.8
• Second Shoulder Room (in): 56.9
• Second Hip Room (in): 52.7
• Summary

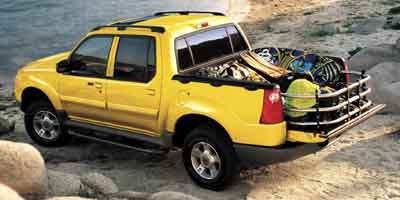

• Vehicle Name: Ford Explorer Sport Trac
• Body Style: 4 Door
• Body Code: 126" WB
